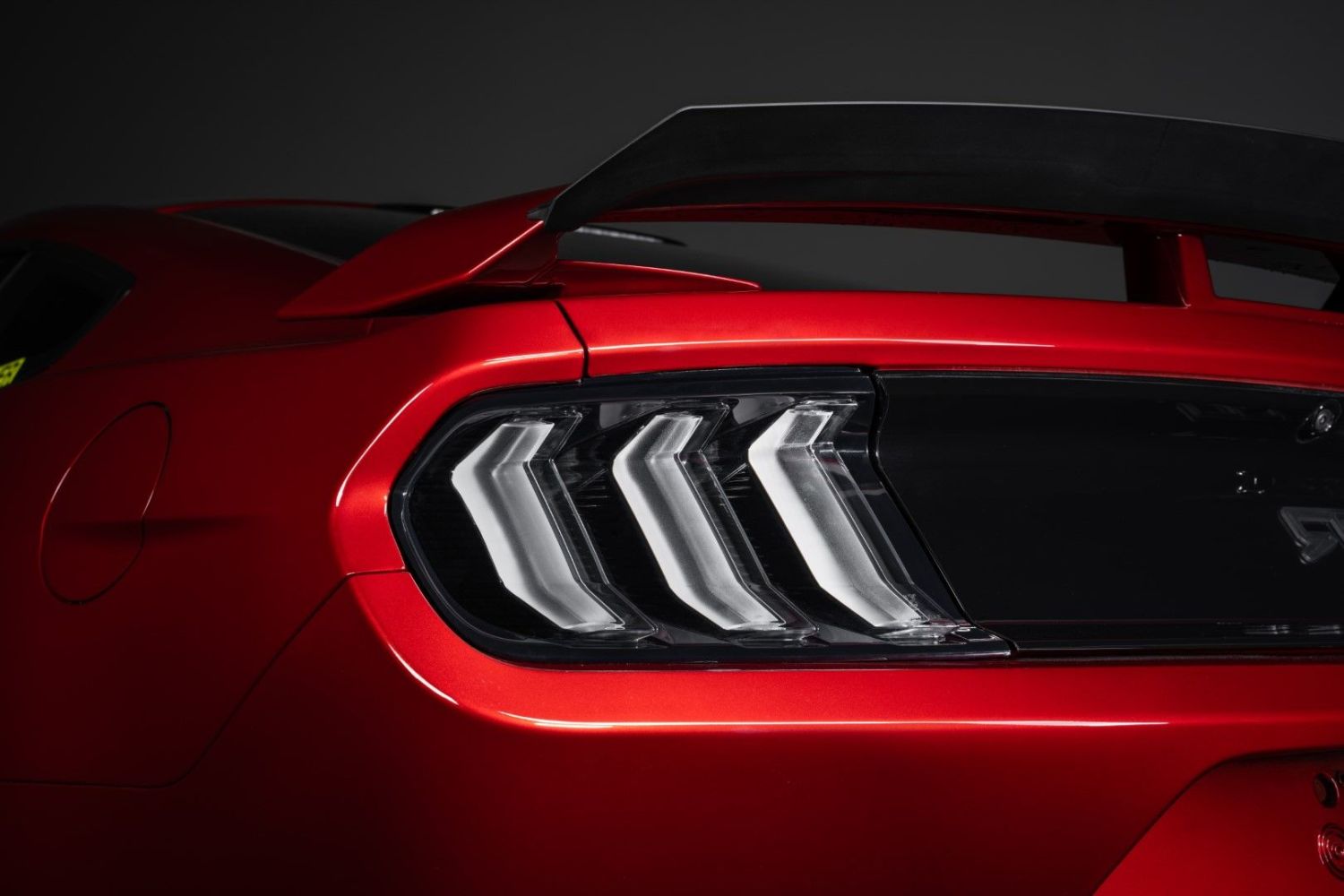

The FORM Lighting 2015-2023 Ford Mustang LED Tail Lights add a modern custom appearance with bright LED illumination, sequential turn signals, and OEM-grade fitment. This installation guide will provide you with detailed instructions on how to install the FORM Lighting 2015-2023 Ford Mustang LED Tail Lights. Watch our installation video or continue reading below for detailed instructions!
Table of Contents
Installation Video
Installation Tools
- 10mm deep socket or 10mm wrench
- Trim removal tool (optional)
Installation Instructions
Step 1 — Remove the Trunk Access Panel
Open the trunk and locate the plastic access panel on the inside of the trunk lid. Remove the four hand knobs securing the panel in place, with two knobs located on each side. Once removed, set the panel and hardware aside for reinstallation.
Step 2 — Remove the Trunk Side Trim
Locate the plastic retaining clip securing the carpet trunk liner near the tail light area. Remove the clip and carefully pull back the carpet liner to expose the rear mounting points for the factory tail light.
Step 3 — Remove the Factory Tail Light
With the trunk liner pulled back, locate the three 10mm nuts securing the tail light assembly. Remove all three nuts using a 10mm deep socket or wrench. Disconnect the factory wiring harness and carefully pull the tail light assembly away from the vehicle.
Step 4 — Transfer the Factory Trim Panel
Before installing the new tail light, remove the factory plastic trim panel attached to the back of the original lamp. The panel is secured with several retaining clips and can be removed by gently pulling outward. Once removed, install the panel onto the back of the new FORM Lighting tail light.
Step 5 — Install the FORM Tail Light
Position the new tail light onto the vehicle and connect the factory wiring harness. Align the mounting studs with the factory mounting holes and reinstall the three 10mm nuts removed earlier. Tighten the hardware securely, taking care not to overtighten.
Step 6 — Repeat for the Opposite Side
Repeat the same removal and installation procedure on the opposite side of the vehicle.
Step 7 — Reinstall Interior Trim Panels
Reposition the carpet trunk liner and reinstall the retaining clip. Reinstall the trunk access panel and secure it using the four hand knobs removed earlier. Verify that all trim panels are properly seated.
Step 8 — Test Tail Light Operation
Turn on the vehicle's lighting system and verify proper operation of the running lights, brake lights, reverse lights, and sequential turn signals. Confirm both lamps function correctly before closing the trunk.
The installation is now complete. Enjoy your new FORM Lighting 2015-2023 Ford Mustang LED Tail Lights!
Questions About the Installation?
If you have any questions about installing the FORM Lighting 2015-2023 Ford Mustang LED Tail Lights, contact us via our support page.
Where Can I Buy the FORM Lighting 2015-2023 Ford Mustang LED Tail Lights?
If you're ready to upgrade your 2015-2023 Ford Mustang with the FORM Lighting LED Tail Lights, visit FORMLights.com or browse our Ford Mustang lighting upgrades for more products.
Want to know more about FORM Lighting products? Visit FORMLights.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKU: FL0006, FL0007, FL0008
